See every machine.
Measure every part.
Live production, quality and downtime visibility, captured straight from the CNC control, not from paperwork. Built in India for machining and auto-component plants.
What a plant cannot see today, and what TnG records instead
Most plants run on log sheets, memory and month-end Excel. TnG replaces guesswork with a record taken from the machine itself.
Production counted by hand
Operator log sheets and the machine counter rarely agree, and by the time anyone checks, the shift is gone.
Automatic production records
Counts and cycles are captured from the CNC. SCADA and CNC totals are compared and gaps highlighted for review.
Downtime with no reason
The machine stopped for 40 minutes. Tool change, breakdown or no material? Without a reason, it cannot be improved.

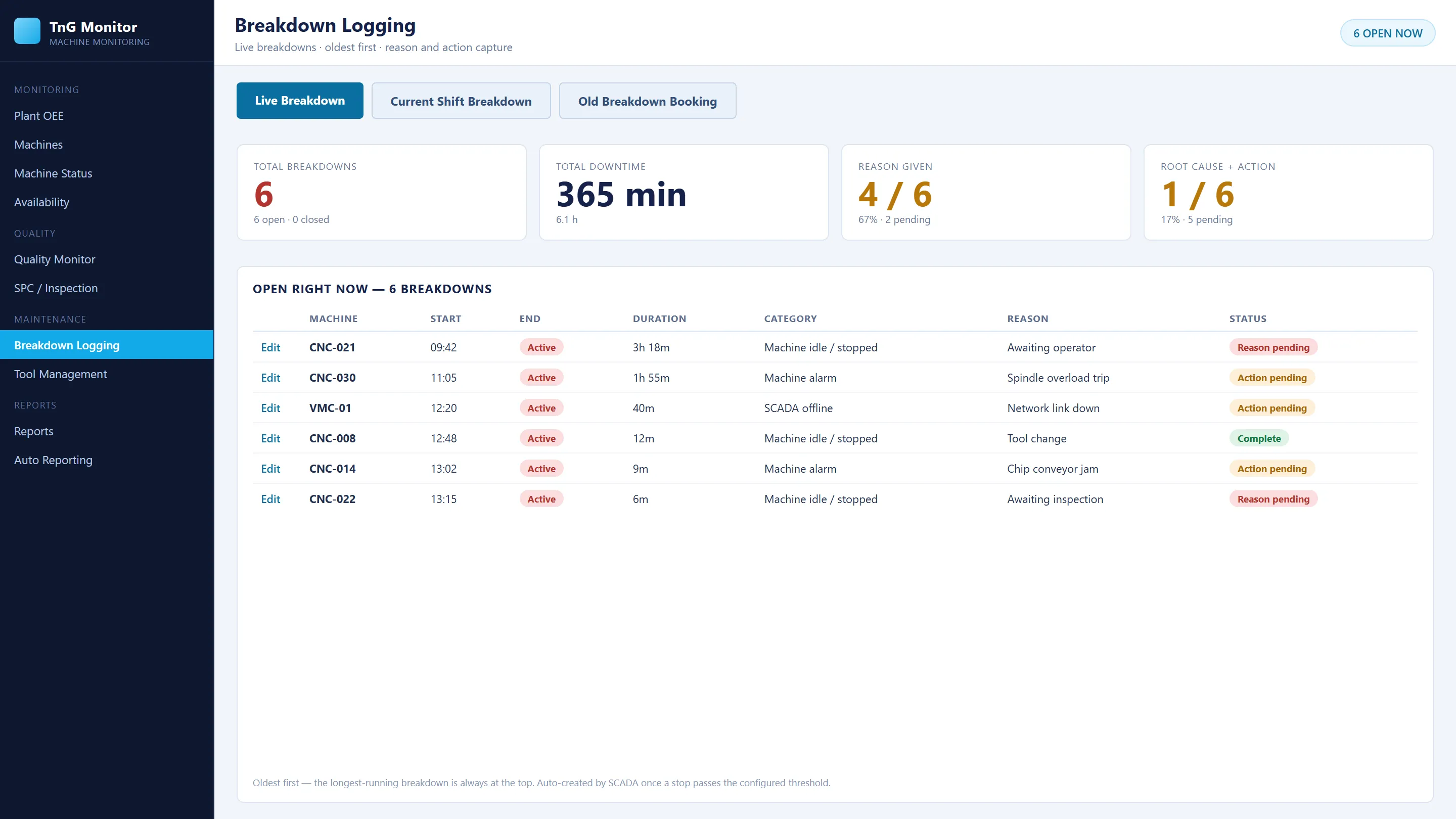

Breakdown records with clear reasons
Stops are recorded automatically, operators and technicians add the reason, and the responsible team is alerted.
OEE calculated in Excel
Assembled days later from partial data. Useful for a report, useless for a decision on the floor.
Current-shift OEE, live
Recorded production, downtime and rejections give OEE and target-versus-actual output during the shift.
Quality found too late
Rejections surface at final inspection, long after the machine produced another hundred parts the same way.
Inspection visibility during production
Connected gauges, SPC, rejection alerts and automatic CNC offset correction bring quality to the machine.
One live record for every machine, part, operator and shift

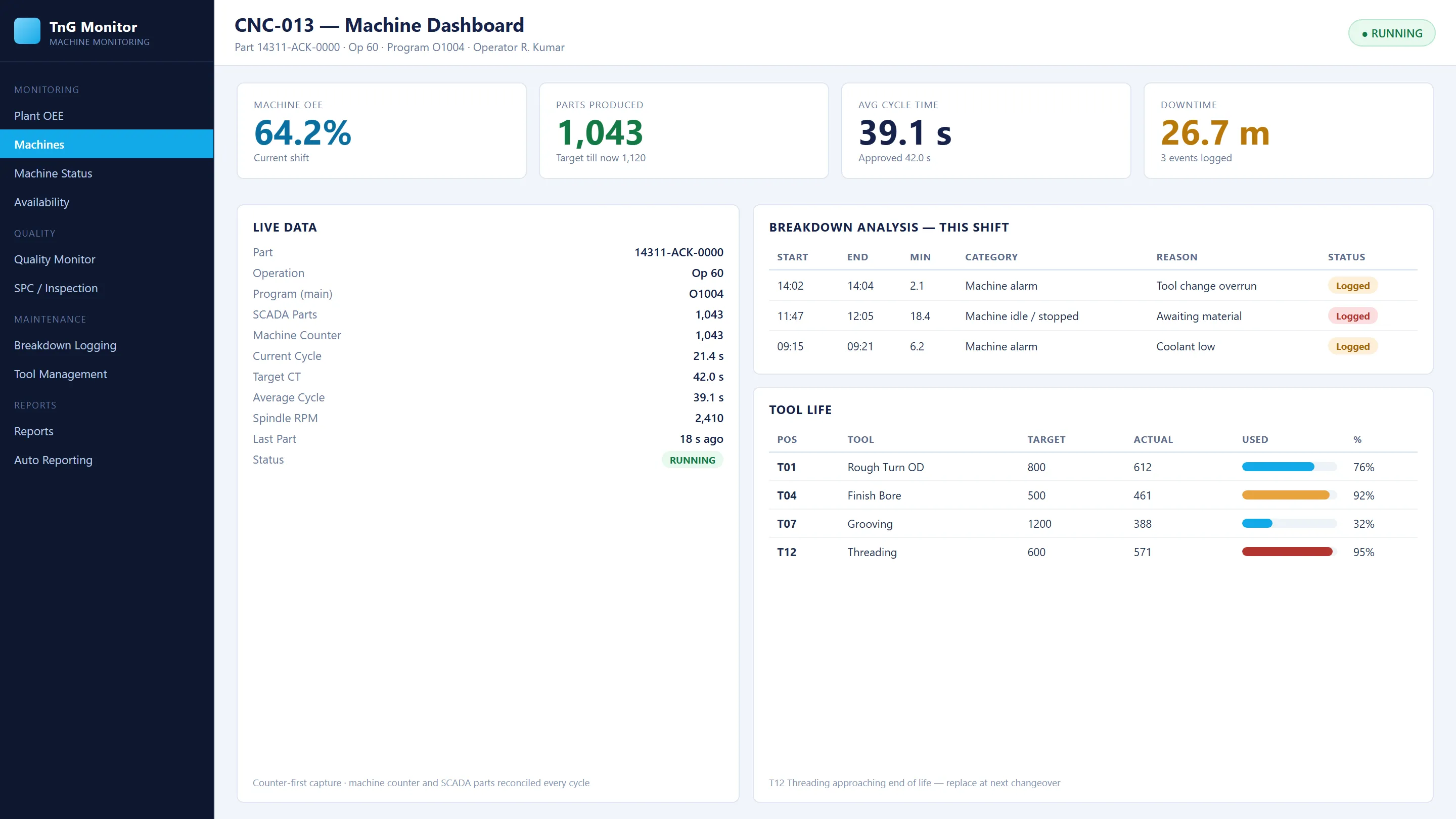

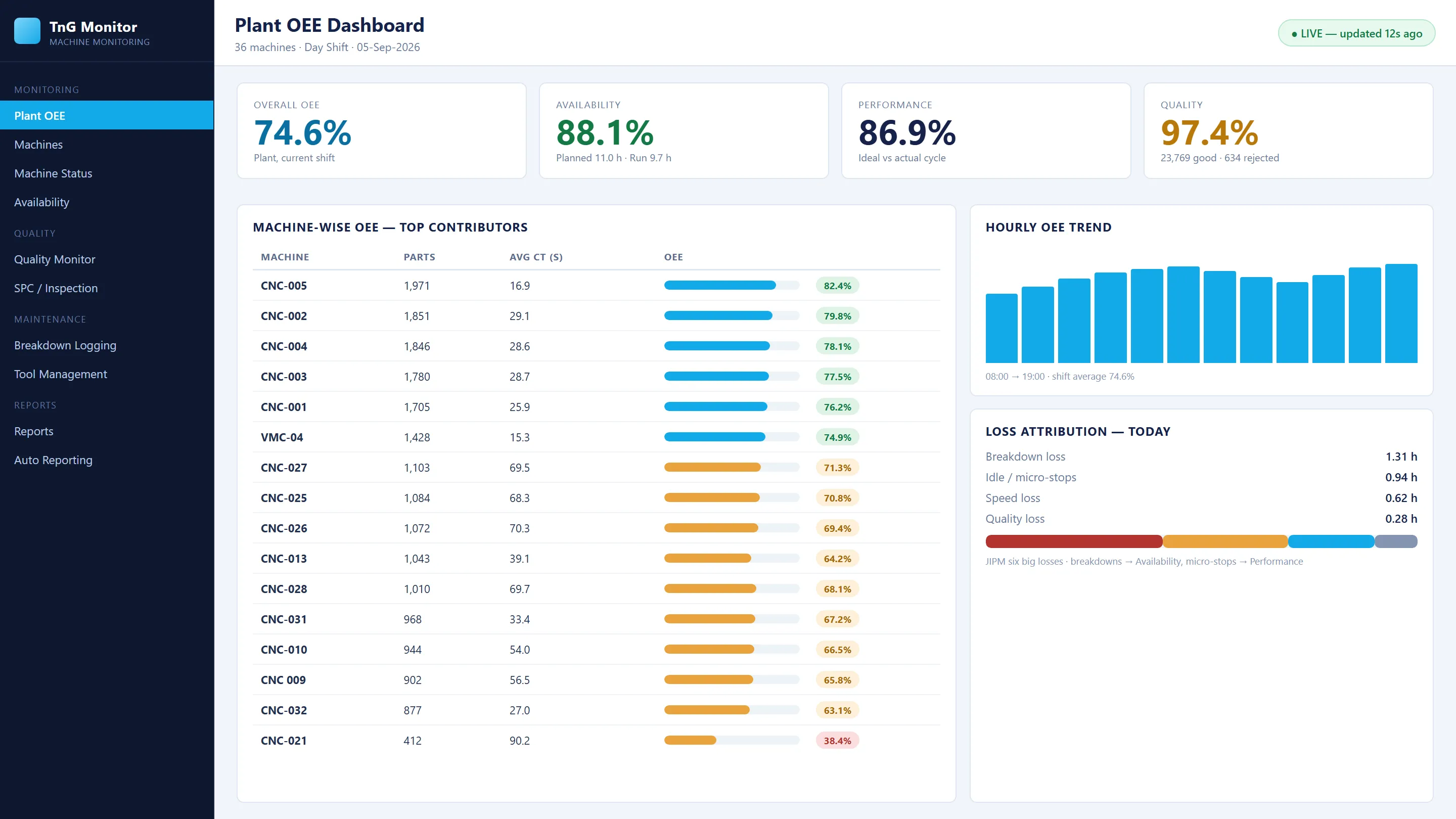

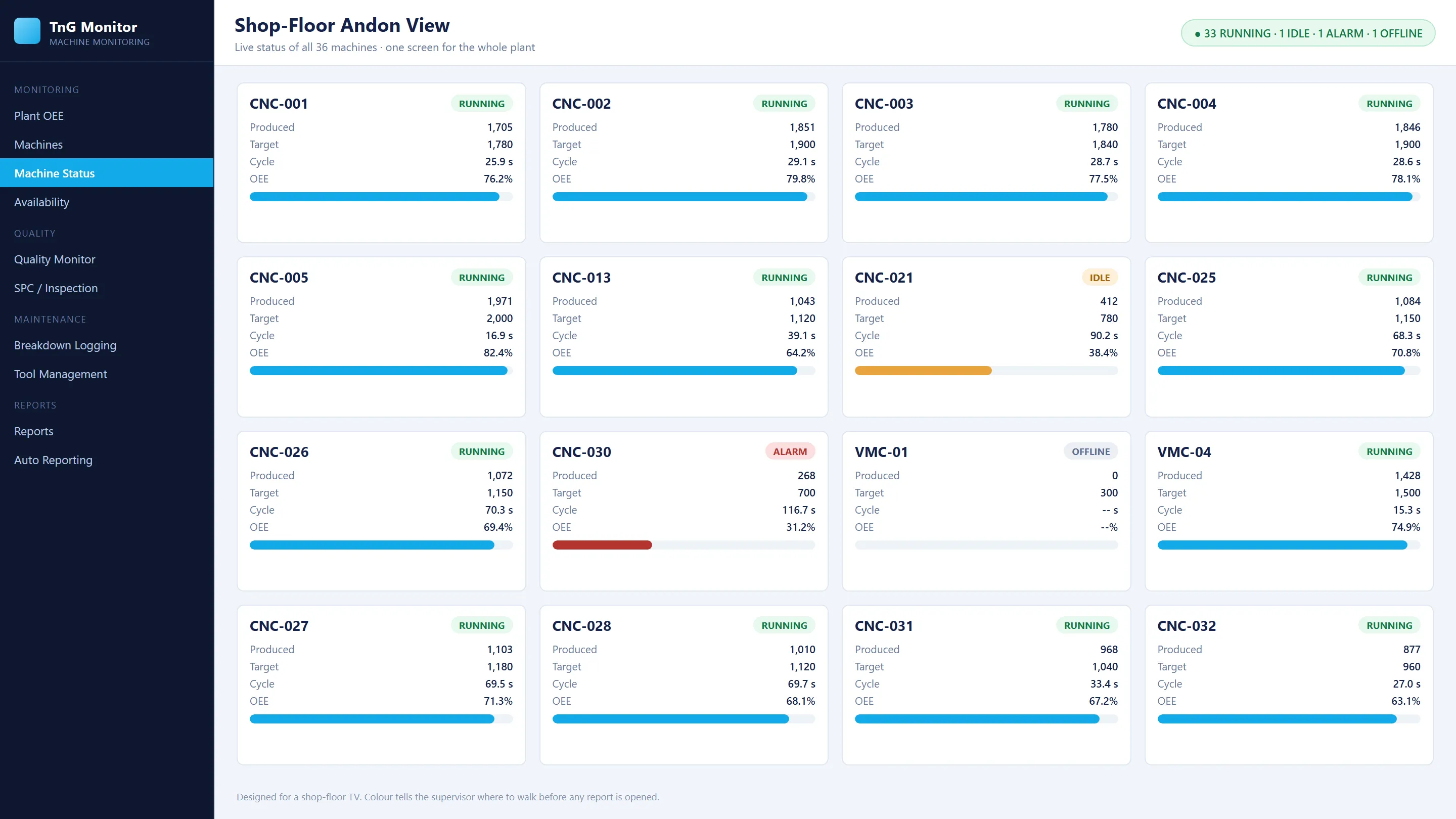

Plant OEE, Andon, machine dashboards, quality and breakdowns: the same data on desktop, web, shop-floor TV and the Android app.
Screens show demonstration data.
Connected machines feed one shared record
Machine connectivity
Status, counts and cycle timing read from FANUC, Siemens and other CNC controls.
Production records
Every record linked to the part, operator and shift, with downtime reasons and inspection results.
Team access
Desktop, web, Andon TV and Android app views of the same data.
Reports and alerts
Scheduled Excel/PDF reports and alerts routed to the responsible team.
From the machine to the measurement to the audit
Use one product, or connect them: gauges feed monitoring, monitoring drives correction, calibration keeps every gauge trustworthy.

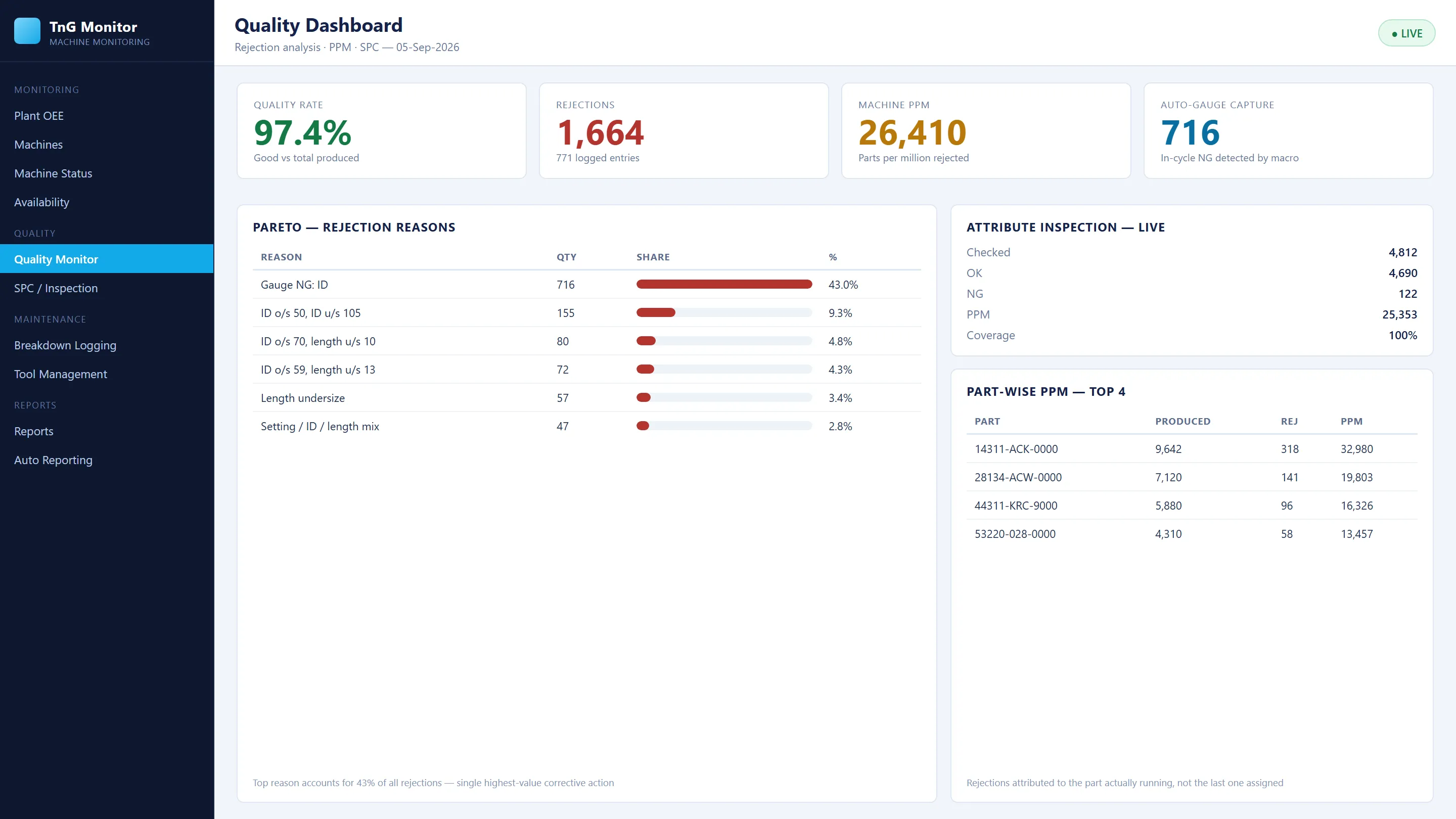

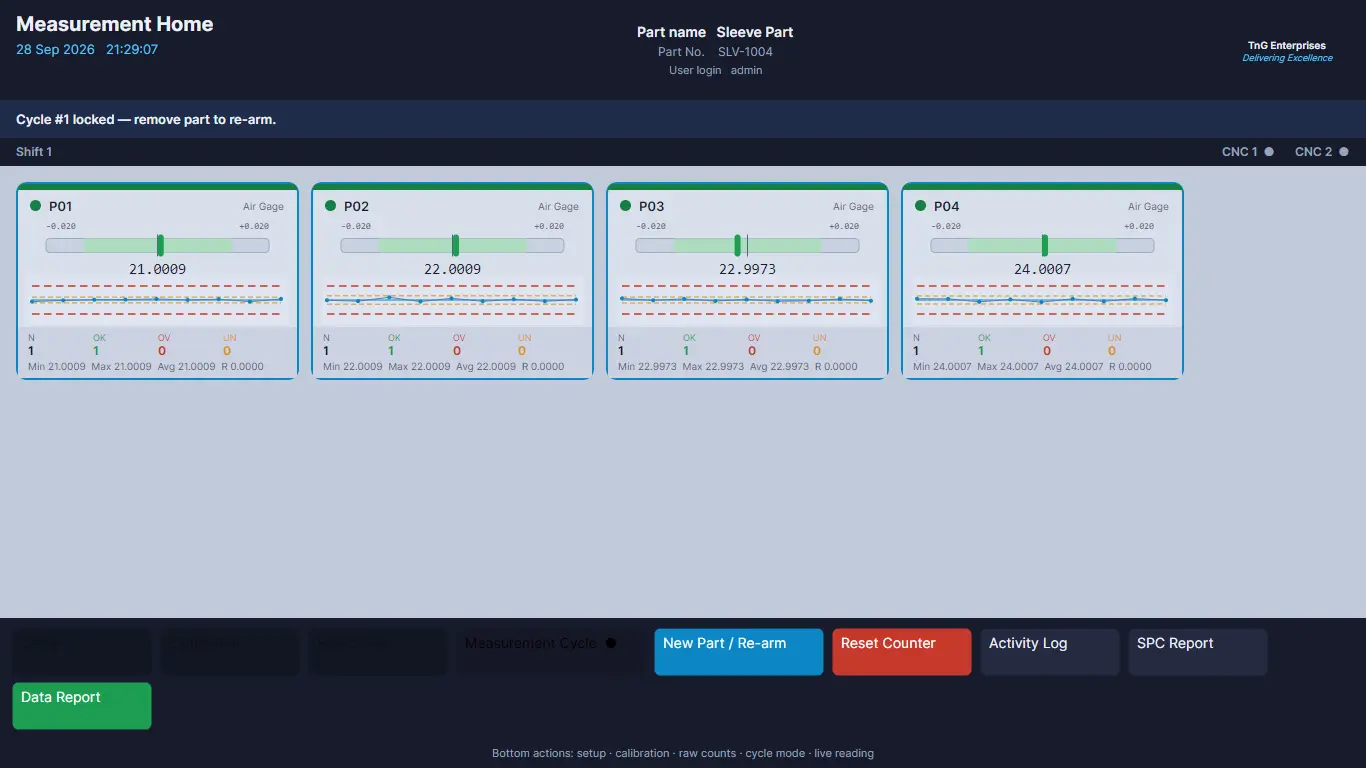

Connected Gauging
The quality module of TnG MMS. Digital gauge readings, SPC, GO / NO-GO attribute checks, rejection alerts, red-bin interlocking and automatic CNC offset correction in one dashboard.
View Connected Gauging

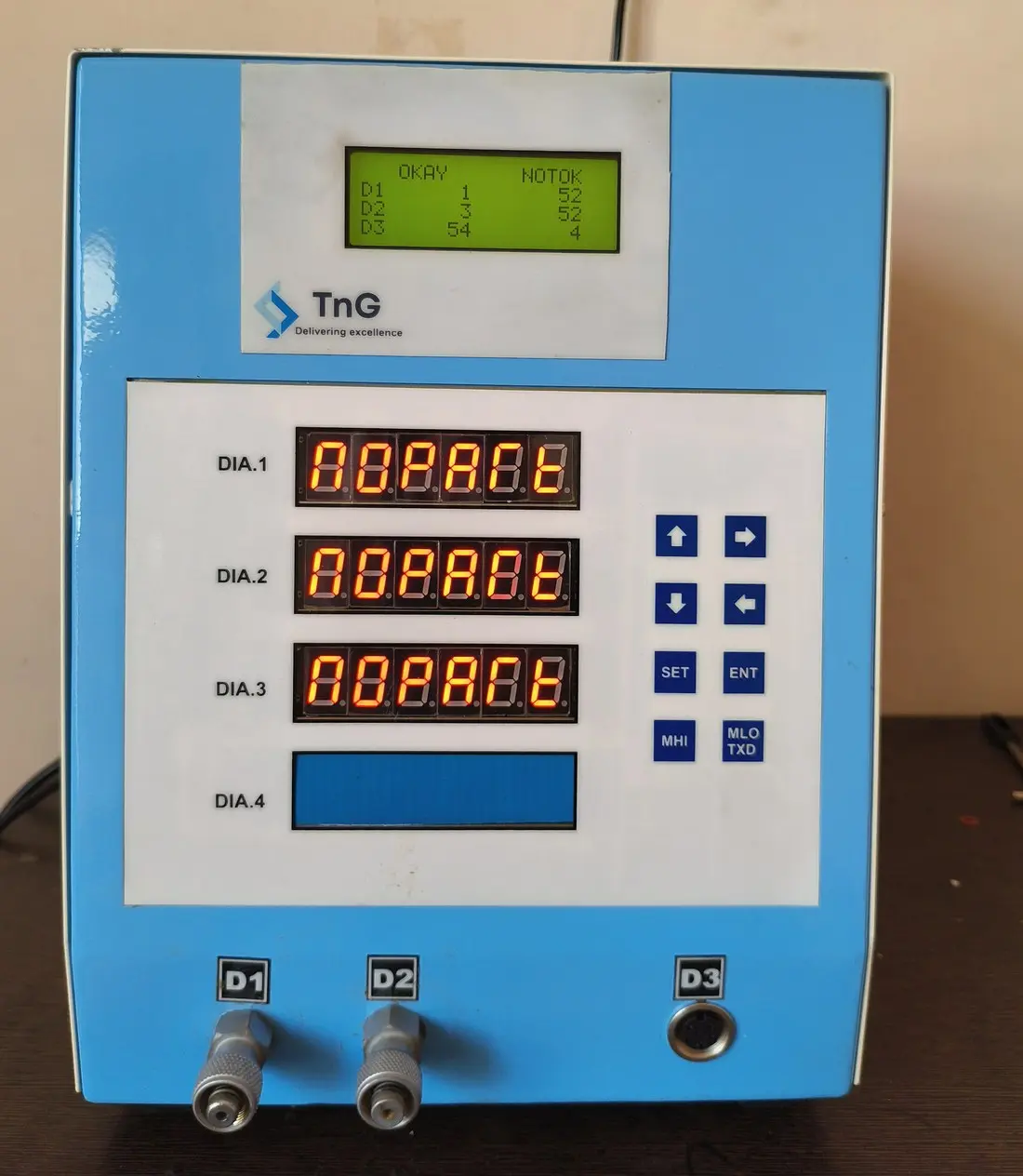

Digital Gauges
A range of TnG digital gauges for in-process inspection, from single-channel units to multi-channel piezo and probe combinations, with 7-segment LED and TFT display options.
View Digital Gauges
Offset Master
Closed-loop offset correction for FANUC CNC. Green / yellow / red control zones, correction direction, frequency and maximum clamp per parameter, and a full measurement and correction record.
View Offset Master

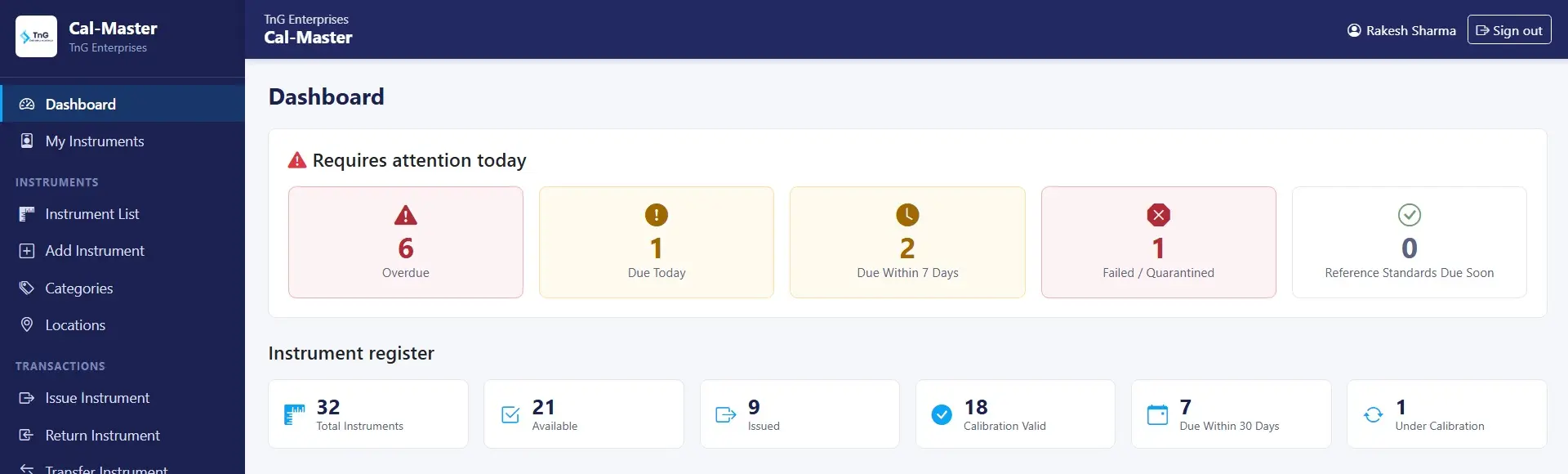

Cal-Master
Calibration and measuring-instrument management for ISO 9001 and IATF 16949 plants. Due-date reminders, approval workflow, certificates with QR labels, issue control and a permanent audit trail.
View Cal-MasterWorks with new and legacy CNCs
FANUC with and without Ethernet, Siemens, and other controls such as Mazak, Mitsubishi and Delta. Conventional machines can be assessed too.
Check my machinesControllers
- FANUC 0i-TD and newer (Ethernet)
- Legacy FANUC (serial)
- Siemens
- Mazak
- Mitsubishi
- Delta
Machines
- CNC turning
- VMC
- HMC
- Hobbing
- Grinding
- Shaving
- Induction hardening
- Thread rolling
- Centreless grinding
- Forging press
Running on shop floors in India
Customer stories with real before-and-after numbers are being prepared with our customers' permission. Ask us for a reference visit or a pilot on your own machines.
See it working on your own machines
Share your machine list and controller details. We will review compatibility and propose a pilot scope for your plant.
